TM203N VFL Power Meter -- VFL & OPM
Self Calibration
Self Auto Off
Stable VFL Output
Set the REF Value
Real-time display of the power consumption

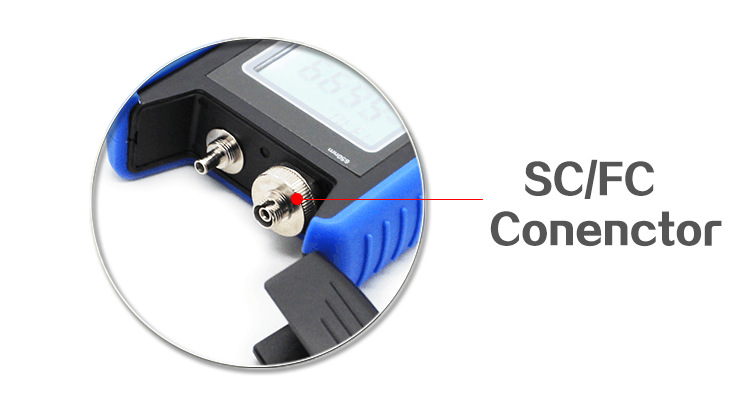

Interchangeable connectors: FC/ SC
Inquiry Now
Features
◇ Self Calibration
◇ Self Auto Off
◇ High Accuracy, high ,High sensitivity, high linearity-
◇ Stable VFL Output
◇ Set the REF Value
◇ Real-time display of the power consumption
◇ Interchangeable connectors: FC/ SC
◇ Rubber Out shell, increased the protective properties for field work
Specifications
| Optical Power Meter | TM203N | |
| Range | Type A:-70～+10 | Type C:-50～+26 |
| Wavelength | 800～1700nm | |
| Calibrated Wavelength | 850/1300/1310/1490/1550/1625nm | |
| Detector | InGaAs | |
| Accuracy | <±3% （-10dBm/22℃） | |
| Resolution | 0.01dBm | |
| Working Temperature ℃ | -10～+50 | |
| Storage Temperature ℃ | -20～+70 | |
| Humidity | 90%（＋30℃） | |
| Connector | FC/SC(ST LC as optional ) | |
| Power Supply | 2pcs AA batteries | |
| Battery Life @ OPM | 140hours | |
| Battery Life @ VFL | 50hours | |
| Auto-off | 10minutes | |
| Weight | 180g | |
| Dimensions | 158×82×29mm | |
| VFL |
Wave: 650nm Output Power: 1/10/20/30/50mw |
|
Packing list
| 1 | VFL Power Meter |
| 1 | Soft case |
| 1 | AA batteries |
| 1 | FC Connector |
| 1 | SC Connector |
| 1 | Manual |
| 1 | BOX |
