TM-OFI-401L Live Fiber Identifier
Support to detect optical signals without disrupting traffic;
Based on non-destructive technology;
Indicate the signal direction in fiber;
Detect a variety of optical tones, 270Hz, 1kHz and 2kHz;
Inquiry Now
Introduction TM-OFI-401L Optical Fiber Identifier Suitable for 0.25mm, 0.9mm, 3.0mm fiber, and no need to replace the clamp block, more convenient than others;
Specification | TM-OFI 401 | ||
| Wavelength Range | 900 to 1700nm (SM) | |
| Recognizable signal type | CW, 2kHz, 1kHz, 270Hz ±10% | |
| Detector Type | InGaAs 2pcs | |
| Fiber Type | 0.9, 0.25, 3.0 mm fiber | |
| Sensitivity | 1310 nm | +10dB to -20 dBm (Continuous Wave) |
| +10dB to -15 dBm (Modulated Signal) | ||
| 1550 nm | +10dB to -30 dBm (Continuous Wave) | |
| +10dB to -25 dBm (Modulated Signal) | ||
| LED Indicator* | Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery | |
| Signal intensity | 0 ~ 40 | |
| Storage Temperature | -20 -- +60 ℃, < 90%RH | |
| Operating Temperature | -10 -- +50 ℃, < 90%RH | |
| Power Supply | AA * 2 | |
| Size | 230mm * 45mm * 45mm | |
| Weight | About 200g | |
Features 1. Support to detect optical signals without disrupting traffic;
2. Based on non-destructive technology;
3. Indicate the signal direction in fiber;
4. Detect a variety of optical tones, 270Hz, 1kHz and 2kHz;
Applications 1. Clean multi-mode and single mode (angled) MPO connectors
2. Clean MPO connectors in adapters
3. Clean exposed MPO ferrules
4. Great addition to cleaning kits
Packing
| Standard | User’s manual | 1 |
| Calibration certification | 1 | |
| Black bag | 1 | |
| Optional | 1 mW visual fault locator (TM-OFI401S) | 1 |
| 5 mW visual fault locator (TM-OFI401M) | 1 | |
| 10 mW visual fault locator (TM-OFI401L) | 1 |

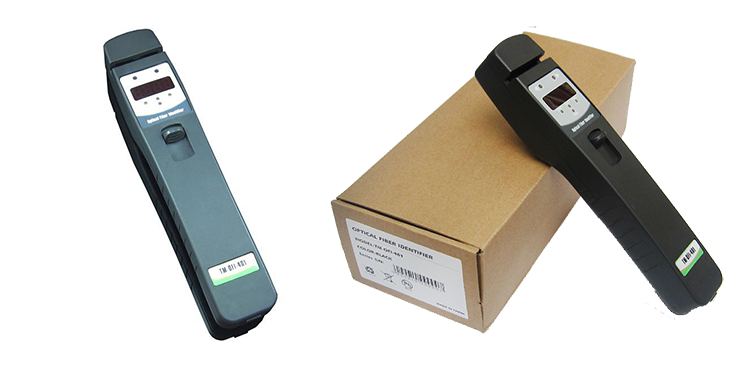

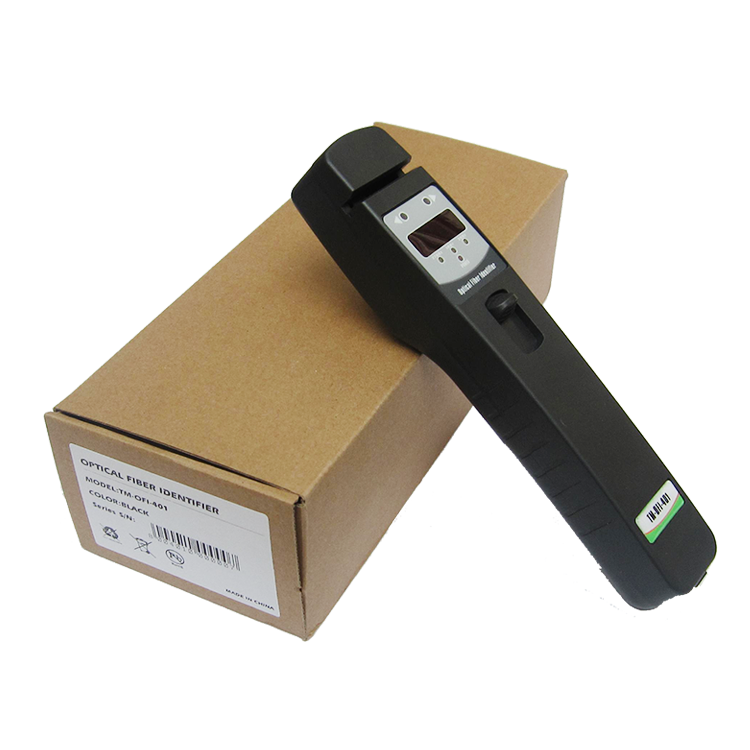

Detailed Picture
