TM-600 ADSL2+ Tester:
◇ Tone Tracker (Optional)
◇ TDR Cable Fault Locator (Optional)
Specifications
TM-600 ADSL2+ Tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.
TDR and Tone Tracker function can be added to this device as options.
It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc
Functions
◇ DSL Physical layer test
◇ Modem Emulation (Replace the user Modem completely)
◇ PPPoE Dialing (RFC1683,RFC2684,RFC2516)
◇ PPPoA Dialing (RFC2364)
◇ Telephone Function
◇ DMM Test
◇ Ping Function (WAN & LAN)
◇ Data upload to computer and software management
◇ Setup system parameter: backlight time, shut off automatically time without operation, press tone,
◇ Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.
◇ Check dangerous voltage
◇ Tone Tracker (Optional)
◇ TDR Cable Fault Locator (Optional)
Key Features
◇ Test objects: ADSL; ADSL2; ADSL2+; READSL
◇ Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
◇ Supports Modem emulation and simulating login to Internet
◇ Supports ISP login (user name / password) and IP Ping test (WAN PING Test, LAN PING Test)
◇ Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)
◇ Connects to CO via alligator clip or RJ11
◇ Rechargeable Li-ion Battery
◇ Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)
◇ Data memory fuction
◇ LCD display, Menu operation
◇ Auto shut off if no any operation on keyboard
◇ Compliant with all known DSLAMs
◇ Software management
◇ Simple, portable and money-saved
Specifications
ADSL2+ |
|
ITU G.992.1(G.dmt),ITU G.992.2(G.lite),ITU G.994.1(G.hs), |
Standards |
ANSI T1.413 issue #2,ITU G.992.5(ADSL2+)Annex L |
Up channel rate |
0~1.2Mbps |
Down channel rate |
0~24Mbps |
Up/Down attenuation |
0~63.5dB |
Up/Down noise margin |
0~32dB |
Output power |
Available |
Error test |
CRC, FEC, HEC, NCD, LOS |
Display DSL connect mode |
Available |
Display channel bit map |
Available |
ADSL |
|
ITU G.992.1 (G.dmt), ITU G.992.2(G.lite) |
Standards |
ITU G.994.1(G.hs), ANSI T1.413 Issue # 2 |
Up channel rate |
0~1Mbps |
Down channel rate |
0~8Mbps |
Up/Down attenuation |
0~63.5dB |
Up/Down noise margin |
0~32dB |
Output power |
Available |
Error test |
CRC, FEC, HEC, NCD, LOS |
Display DSL connect mode |
Available |
Display channel bit map |
Available |
DMM Test |
DC voltage (V): |
-400~400 |
AC voltage (V): |
0~400 |
Loop resistance(Ω): |
0~20000 |
Capacitance (nF): |
0~1000 |
Insulation resistance (MΩ): |
0~50 |
Tone Tracker (Optional) |
With supplied accessories, it can do cable tracing and find the trend of the lines |
TDR Function (Optional)-Auto Test the cable fault distance (Cable Break/ Cable Mix) |
Test Range |
<2.5km |
Dead Zone |
<1m |
Resolution Rate |
1m |
General Specification |
LCD |
800x480 TFT |
Power supply |
Internal Rechargeable 6600mAH Li-ion battery |
Battery Duration |
4 to 5 hours |
Working temperature |
0-40 oC |
Working moisture |
5%-90% |
Dimensions |
170mm×70mm×52mm |
Weight: |
<0.6kg |

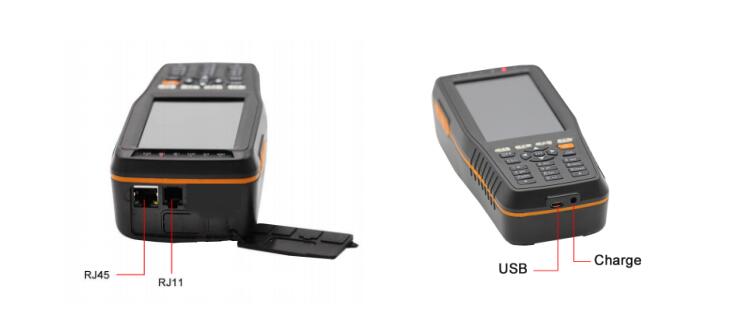

Detailed pictures
